DTS227, DSS227(Z) the three-phase electronic watt-hour meter is with the LCD display, active energy display togerther, with A, B, and C three phase voltage, three-phase current, power factor and the time record of break phase, the infrared communication connection and the infrared remote reading switch energy meter, can do the total electric energy measurement for active and reactive: with last month total electric energy for active, last month total electric energy for reactive.
This meter is widely suitable for the electric power measurement terminal and the common user’s electric power measurement instrument, can instead of active, reactive two energy meters, and voltage, current, power factor meter, etc.

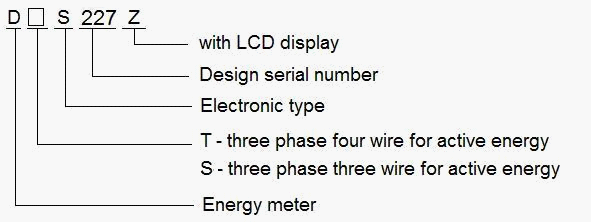

Type and meaning:
Technical parameters:
Type |
Name |
Accuracy |
Reference voltage Un (V) |
Rated current |
Meter constant (imp/kwh) |
DSS227-Z |
Three phase three wire |
Class1.0 & 2.0 |
3×100V |
3×1.5(6)A |
1600 |
3×3(6)A |
1600 |
3×380V |
3×5(20)A |
800 |
3×10(40)A |
400 |
3×15(60)A |
400 |
3×20(80)A |
200 |
3×30(100)A |
200 |
DTS227-Z |
Three phase four wire |
Class1.0 & 2.0 |
3×220/380V or 3×57.7/100V |
3×1.5(6)A |
1600 |
3×5(20)A |
800 |
3×10(40)A |
400 |
3×15(60)A |
400 |
3×20(80)A |
200 |
3×30(100)A |
200 |
Note: the meter constant is according with its cover marking.
1) Display type: LCD display
2) Reference frequency: 50Hz/60Hz
3) Power loss: <5VA
4) Reserved Lithium Cell life: >10years
Continuous operating time: ≥3years
5) Running with No-load:
With no current in the current circuit(s), the electricity output is less than one pulse at 115% reference voltage.
6) Starting:
Under the condition of the referenced voltage, reference frequency and cosΦ=1, when the loaded curent is 0.4% of the basic current, energy pulse output indicator light can indicate continuously, and has the energy pulse output.
7) Pulse width: 80 (±20)ms
8) Weight: about 1.0kg
Normal operation and installation conditions:
1、Normal operation temperature:-25℃~+55℃;
2、Limited operation temperature:-40℃~+70℃;
3、Relative humidity:less than 85%;
4、No corrosive in the air.

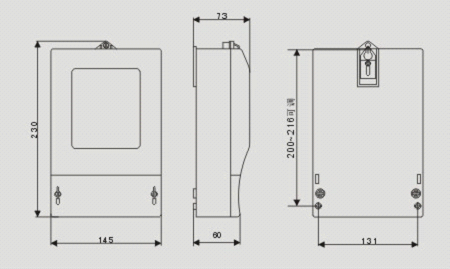

Outline and installation dimensions:
Unit:(mm)
